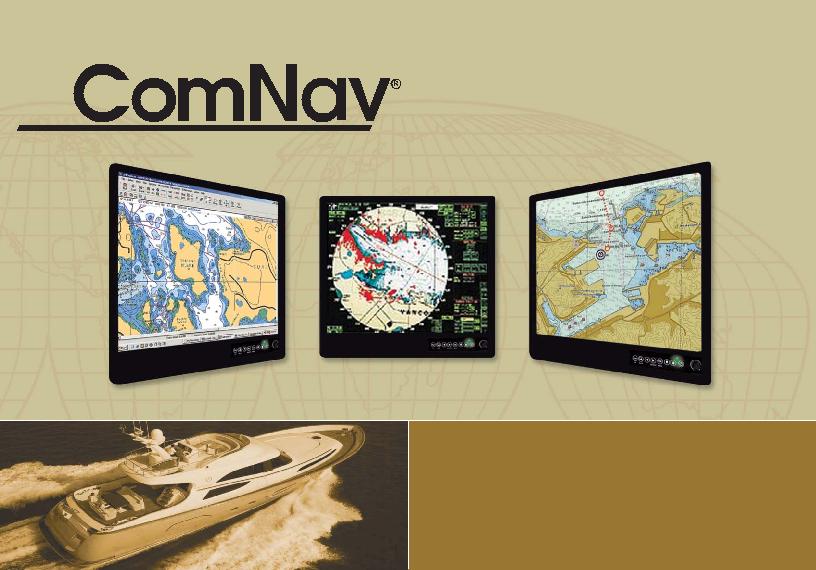

Sunlight Readable CS Series - LED Backlit Slim Bezel

Advanced Technology

Engineered for

Superior Performance

Sunlight Readable LCDs

LED Backlit Displays

CS SERIES

•12” and 15” models

•White luminescence LED backlit monitors are super bright for increased reliability and long life

•Superior thermal channel design runs cooler than standard monitors (with built-in auto heater for extreme cold weather)

•Hyper Dimming — knob controls backlight brightness from 0% to 100%

•OSD user control — provides user friendly front panel access

•1400 nit brightness sunlight viewable — crystal clear enhanced visibility using advanced technology

•Optical bonding LCD technology reduces reflection

•Touchscreen options with anti-glare protective glass

•Multi scan function accepts multi-video inputs, DVI, VGA, S-Video and supports Picture In Picture (PIP) function

•Marine grade corrosion resistant connectors

•IP65 rated waterproof design

•Universal flush or pedestal mounting

•Shock & vibration proof to rugged military specifications

•Wide angle viewing

•Supports 12-36 VDC or 110/240 VAC power supply

•CE, FCC certified, IEC 60945 and RoHs compliant

•1 year warranty

•Worldwide service

CS SERIES

SYSTEM CONFIGURATION & OPTIONS

TFT Characteristics:

Resolution:

12”

1024 x 768



15”

1024 x 768

Pixel Pitch(RGB):

0.24 (H) x 0.24 (V) mm

Contrast Ratio:

1200:1 Max



Light Intensity:

2400 cd/m (typ.)

Viewable Angles:

120(H);100(V)

Input Signals:

RGB Signal:

D-SUB 15P connector (female)

Composite Video:

RCA phono plug

S-Video Signal:

S-Video (SVHS) plug

DVI-D Signal:

DVI-D input 24pin connector

DC Power Signal:

Screw terminal block

AC Power Signal:

Std IEC Inlet

Touch Screen (Optional):

D-SUB 9P connector (female)

Remote via RS-232:

D-SUB 9P connector (female)

Power Specifications:

Power Supply: 12 to 36 V DC power supply with Terminal block or 110/240 VAC power supply — adapter included

Mechanical and Environmental:

Mechanical Mounting:

Panel (Flush) mount with IP65*,

Operating Temperature:

-15° to 55°C Optional -20° to 60°C

Operating Humidity:

5% to 95% (non condensing)

Anti-Vibration:

5Hz~500Hz / 1G / 3 Axis

Anti-Shock:

15G, 11ms duration

* SAW Touch for IP54



Certificate & Approvals:

CE, FCC certified, RoHs, IEC 60945 compliant

ComNav Marine Ltd.

#15-13511 Crestwood Place,

Richmond, British Columbia • Canada • V6V 2G1

Phone: 604-207-1600 • Fax: 604-207-8008

E-mail: sales@comnav.com

www.comnav.com

Worldwide Service

Dimming

AR safety glass

PIP

Anti-corrosion

IP65 proof

Touch screen



OSD front panel

Wide Voltage

application

Mechanical Dimensions (in/mm):





Width

Height

Depth

C12S

12”

13.3”/337mm

11.5”/293mm

2.8”/71mm

C15S

15”

16.2”/412mm

13.6”/345mm

3.15” /80mm

User Controls:

•Power On/Off via front buttons

•Variable brightness knob control

•Power mode status LED

•On screen display control (OSD)

•OSD remote control via RS-232

Available Options:

Touch Screen:

SAW, 5 wire resistive

AR Safety Glass:

3mm anti-reflective protective glass

Bracket Mounting:

VESA Mount Bracket



Swivel “U” bracket for horizontal or



vertical bulkhead mount

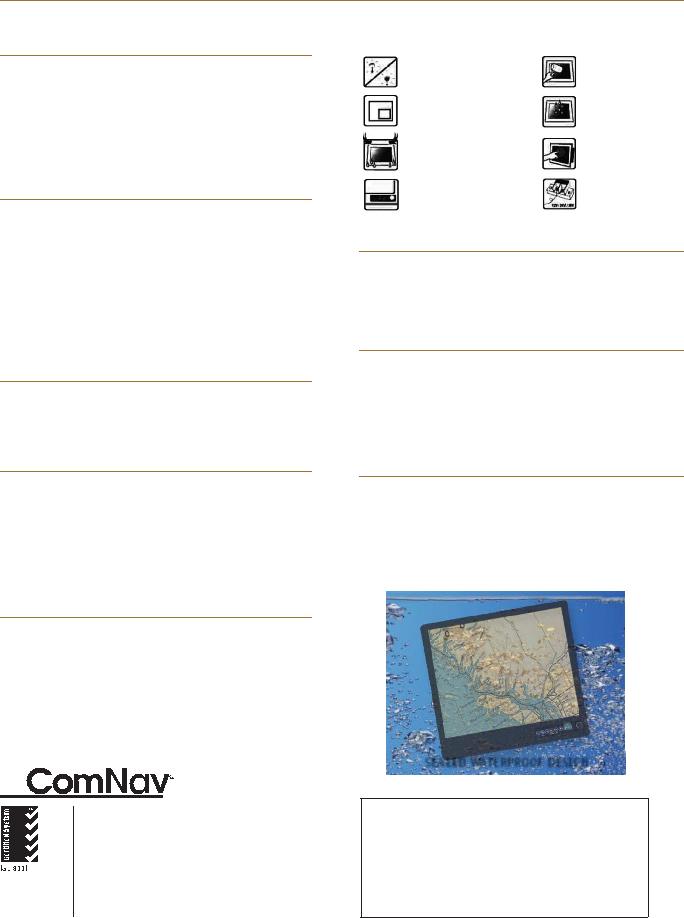

SEALED WATERPROOF DESIGN

Represented by:

Printed in Canada

Specifications subject to change without notice
