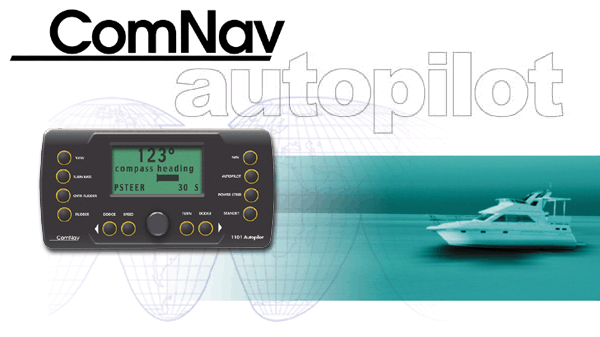

1101 Autopilot
- Watertight Control Unit
- Solenoid output operates steering valves drawing up to 3 amps
- Several optional drive interfaces adapt to most reversing drive units
- Autocompensation corrects Fluxgate Compass deviations
- Large backlit Graphic LCD display for easy viewing
- Digital and Bar Graph Rudder Angle indicator display
- Add remote stations with the optional 101, 201 and 211 remote controls
- Add a full function 2nd Station with an optional 1101 Control Unit
- Three "Turn" functions (U-Turn, Continuous & Emergency)
- Course Knob is used for making small and large course changes
- Power Steering feature for steering and maneuvering
- Dodge Function keys for avoiding obstacles while steering an Autopilot or Nav course
- "Hands off" automatic tuning of Trim Control
- Easy to program Rudder, Counter Rudder, Yaw and Turn Rate Controls
- Navigate and steer by Loran or GPS using the built-in NMEA 0183 interface
- Adaptive software continually optimizes rudder positioning
- "Ghost Rudder" takes over instantly in the event of Rudder Feedback failure
- Auto self-testing and system diagnostics
- Auto dockside set-up routine for accurate and simple system start-ups
- Accepts sin/cos input from existing Fluxgate Compasses
- Optional sensor for magnetic compass input (externally gimballed)
- Input for optional Jog Switch Controls
- Output for optional Rudder Angle Indicators (up to 5 stations)
- Rudder speed output for controlling two speed hydraulic pumpsets
- Comes with surface mount bracket

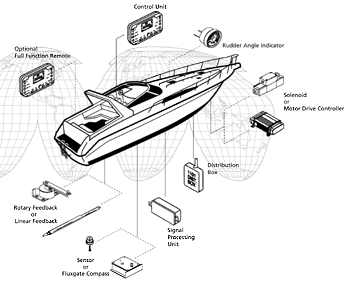

A basic ComNav 1101 electronics package includes: Control Unit, Signal Processing Unit, Distribution box, Fluxgate Compass or Standard Sensor for a Magnetic Compass, output for Solenoid Valves, Rotary or Linear Feedback and Interconnecting Cables.
Specifications
| Operating Voltage: | 12 - 24VDC |
|---|---|
| Power Consumption: | With Solenoid Valves, 0.5 Amps Average / 3 Amps Peak |
| Power Consumption: | With Drive Box & Reversing Pump, 3.0 Amps Average / 20 Amps Peak |
| Navigation Interface: | NMEA 0183 (Loran, GPS or Plotter) |
| Heading Reference: | Fluxgate or Sensor |
| Course Resolution: | 1.0 Degree |
| Course Detection: | ±0.25 Degree |
| Clutch Output: | 3.0 Amps Maximum |
Dimensions (W x L x H)
| Control Unit: | 180 x 93 x 27 mm 7.09 x 2.54 x 1.06 inches |
|---|---|
| Processor: | 210 x 95 x 83 mm 8.25 x 3.75 x 3.25 inches |
| Distribution: | 114 x 133 x 25 mm 4.5 x 5.25 x 1.0 inches |
| Fluxgate: | 142 x 107 x 76 mm 5.6 x 4.2 x 3.4 inches |
| Pump: | 122 x 190 x 102 mm 4.8 x 7.5 x 4.0 inches |
