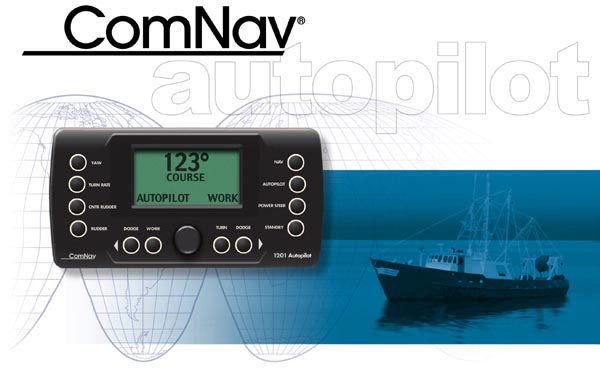

1201 Autopilot
- Fixed station autopilot
- Superbly suited for "work" vessels requiring ultimate rudder response
- The speed trip point is easily entered
- Adjustable rudder scaling factor from .25 to 3, in increments of 0.25
- Manual adjustments can be made "on-the-fly" in Work mode
- Three "Turn" functions, Continuous, Emergency and "U" Turns
- Compatible with most standard types of steering systems
- Water resistant Control Head
- "Hands Off" automatic trim
- Adjustable yaw, turn rate and rudder settings
- Optional full function Remotes both fixed and hand held
- Easy course changes, from one degree to major changes
- "Nav" mode accepts NMEA 0183 information
- Heading output provides NMEA 0183 and Furuno AD 10S Heading Info
- Ten selectable steering parameters for Fast, Slow and Work modes
- Digital display of rudder angle
- Output for optional analog rudder angle indicator, up to 4 stations
- Backlit LCD display for comfortable viewing
- Adjustable brightness and contrast
- Built-in diagnostics and self tests plus visual and audible alarms
- Fully compatible with your onboard instruments
- Extended 3 year warranty
- Meets CE requirements
- Reliable in any sea and weather condition

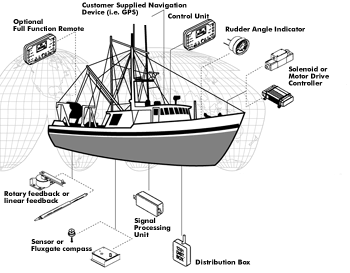

A basic ComNav 1201 electronics package includes: Control Unit, Signal Processing Unit, Distribution box, Fluxgate Compass or Standard Sensor for a Magnetic Compass, output for Solenoid Valves, Rotary or Linear Feedback and Interconnecting Cables.
ComNav 1201 Automatic Pilot Specifications
| Operating Voltage: | 12 or 24V DC |
|---|---|
| Power Consumption: | Average 0.5 amps, 3 amps Peak |
| Solenoid Output: | 3 amps max. |
| Navigational Interface: | NMEA 0183 |
| Heading Output: | NMEA 0183 and AD 10S |
| Heading Reference: | Fluxgate or Magnetic Compass |
| Course Resolution: | 1° |
| Course Detection: | 0.25° |
Dimensions
| Control Unit: | 180mm x 93mm x 27mm / 7.09 x 3.66 x 1.06 inches |
|---|---|
| Signal Processor: | 210mm x 95mm x 83mm / 8.25 x 3.75 x 3.25 inches |
| Distribution Box: | 114mm x 133mm x 25mm / 4.5 x 5.25 x 1.0 inches |
| Fluxgate Compass: | 142mm x 107mm x 76mm / 5.6 x 4.2 x 3.0 inches |
Options
- A wide range of fixed or portable full function Remotes
- Non Follow-up Jog switches
- Remote Expander used to support up to 4 Remotes
- Rudder Angle Indicator, easy-to-read analog display
- Rate Stabilized Fluxgate Compass
- Motor Drive Controller to interface with pumps or mechanical drives
Specifications subject to change without notice
