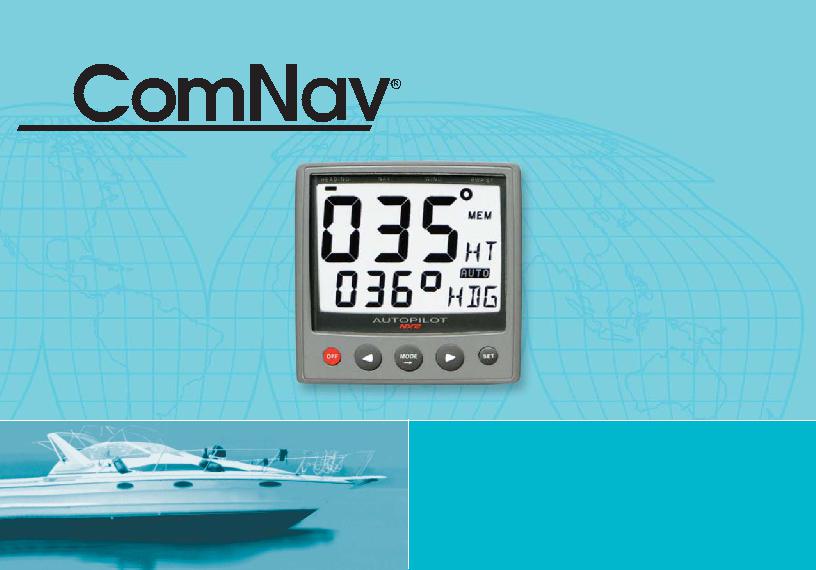

1500 Autopilot

Advanced Autopilot

Technology for

Recreational Vessels

Autopilot

1500

•Visual and audible alarms for trouble shooting

•Wide viewing angle high contrast LCD display

•Extremely stable fluid damped Fluxgate Compass

•Reliable in any sea conditions

•Interface to NX2 / Nexus Network Instruments

•Simple 5 keypad design

•Steer by wind (sail options via NX2 / Nexus Network)

•Easy to install

•Connect up to four full functional control heads or handheld remotes

•Power steering feature for ease of manoeuvring

•Compatible with most standard types of steering systems

•“Hands Off” automatic trim

•Adjustable backlit LCD display and keypad for night viewing

•Output for optional analog Rudder Angle Indicator; up to four stations

•Built-in drive for reversing pumpsets and DC solenoid valves

•NAV interface input and heading output in NMEA 0183

•CE approved for EMI and RFI immunity

•Extended 3 year warranty

AUTOPILOT 1500

SYSTEM CONFIGURATION & OPTIONS

SPECIFICATIONS

Operating Voltage: 11 to 28 VDC

Power Consumption: 4 Watts

DC Reversing Pump & Solenoid output: 25 Amps Max

Bypass Valve Output: 5 Amps

Navigational Interface: NMEA 0183

Heading Output: NMEA 0183

Heading Reference: Fluxgate Compass

Course Resolution: 1°

Course Detection: 0.1°

ComNav Marine Ltd.

#15-13511 Crestwood Place,

Richmond, British Columbia • Canada • V6V 2G1

Phone: 604-207-1600 • Fax: 604-207-8008

E-mail: sales@comnav.com

www.comnav.com

Worldwide Service

OPTIONS

•Sail Interface Package (requires: Multi, Server and Wind Transducer).

•Non-follow up Jog Switches.

•Digital or Analog Rudder Angle Indicators and Compass Repeaters.

•Uses up to 4 Full Function Remotes or Control Heads.
