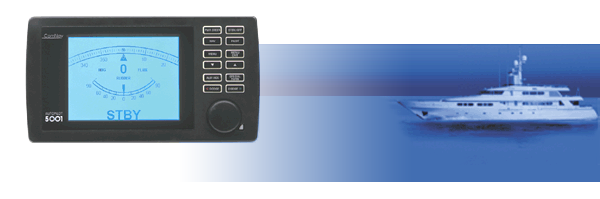

5001 Autopilot
- Fixed station autopilot, either surface or bracket mounted
- Optimized for larger vessels, in the range of 80 to 500+ feet
- Waterproof control head
- Large LCD display
- Both LCD and control buttons are illuminated and have an adjustable automatic dimmer
- Graphical and/or digital RAI display in all modes
- Reliable in any sea and weather condition
- Easy course changes, from one degree to major changes using large course knob
- Three "Turn" functions, Continuous, Emergency and "U" Turns
- Power steering feature for ease of maneuvering
- Port and Starboard dodge buttons for collision avoidance
- Adaptive Steering allows tuning of the pilot for the straightest possible course
- Fluxgate, Magnetic or Gyro compass type selectable from the menu
- Two Navigation ports for dual Nav input of NMEA 0183
- Heading output provides NMEA 0183
- Output for optional analog Rudder Angle Indicator, up to 4 stations
- Visual and audible alarms
- Easy to install and fully compatible with your onboard instruments
- Optional full function Remotes, both fixed and hand held
- Extended 3 year warranty

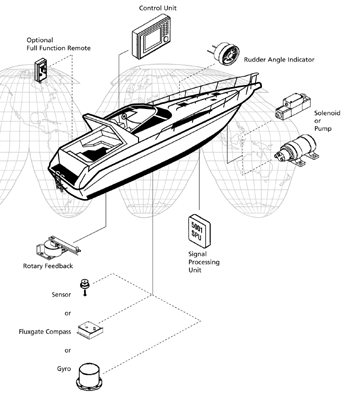

A basic ComNav 5001 electronics package includes: Control Unit, Signal Processing Unit, ComNav Fluxgate Compass or Standard Sensor for a Magnetic Compass, Gyro Interface, Rotary Feedback, output for Solenoids or Reversing Pumps and Interconnecting Cables.
ComNav 5001 Automatic Pilot Specifications
| Operating Voltage: | 10-40V DC |
|---|---|
| Power Consumption: | Average 0.5 amps, 3 amps Peak |
| Drive Output: | 20 amps |
| Navigational Interface: | NMEA 0183 |
| Heading Output: | NMEA 0183 |
| Heading Reference: | Fluxgate, Magnetic Compass or Standard Gyro |
| Course Resolution: | 1° |
| Course Detection: | 0.1° |
Dimensions
| Control Unit: | 248mm x 137mm x 43mm / 9.75 x 5.4 x 1.7 inches |
|---|---|
| Distribution Box: | 381mm x 305mm x 108mm / 15.0 x 12.0 x 4.25 inches |
| Fluxgate Compass: | 142mm x 107mm x 76mm / 5.6 x 4.2 x 3.0 inches |
Options
- A wide range of fixed or portable full function Remotes
- Non Follow-up Jog switches
- Remote Expander used to support up to 4 Remotes
- Rudder Angle Indicator, easy-to-read analog display
- Rate Stabilized Fluxgate Compass
Specifications subject to change without notice
