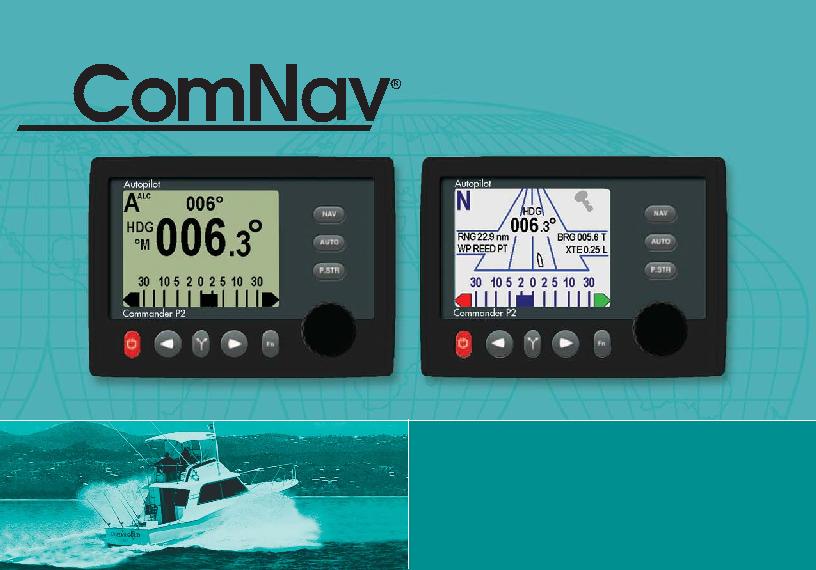

Commander Model P2

Engineered for Performance

Commander P2

Autopilot

•Auto Learning using Intelligent Steering Technology — IST

•Auto Setup — automatic drive detection, automatic pilot calibration & automatic compass compensation

•Auto Sea State adjustment for reliability in all weather conditions

•Sunlight Viewable TFT LCD or silver backed high contrast monochrome LCD

•Work Mode — Superbly suited for professional performance on vessels requiring ultimate rudder response

•Adjustments can be made “on the fly”

•Advanced Power Features include automatic helm bias, automatic leeway control for minimizing course errors due to wind and tide

•Automatic Thruster assist for dead-ahead slow or station keeping (option)

•Proportional Rate Control to provide gentle smooth response at fast cruising speeds

•NAV Mode provides adaptive precise track steering

•NMEA 0183 input/output ports

•Quick Turn Selection — continuous circle, U-turn, Emergency MOB to steer the Williamson-Recovery turn

•FISH ZAG to allow the sport fisher to mimic the actions of live prey more closely

•Simple touch 8 button illuminated keypad

•Multi-language capability configurable in English, French, Italian, Spanish and Icelandic

•Universal Mount — surface mount, flush mount or bracket mount

•Waterproof — Control head to commercial grade IP67 standards

•CE compliance for EMI and RFI immunity

•Extended 3 year warranty

COMMANDER P2

SYSTEM CONFIGURATION & OPTIONS

DIMENSIONS

Control Head (surface mount w/o knob): 155 x 113 x 29 mm / 6.1 x 4.5 x 1.2 inches. Cable 25’ Head to SPU Signal Processing Unit: 257 x 184 x 73 mm / 10.2 x 7.3 x 2.9 inches

SPECIFICATIONS

Operating Voltage: 10 to 30 VDC

Power Consumption: Average 0.5 Amps, 3 Amps Peak (Lower consumption capability with low backlight setting)

Drive Output: 20 Amps

Navigational Interface: Dual NMEA 0183 inputs

NMEA 0183 Output: Heading (10x per sec), Autopilot Status (1x per sec)

Heading Reference: Fluxgate, Magnetic Compass, NMEA Compass or Heading Sensor G2/G2B GPS compass

Course Resolution: 1°

Course Detection: 0.1°

Control Head: Sunlight viewable high contrast LCD is available in color or monochrome version; QVGA (320 x 240) high resolution display

ComNav Marine Ltd.

#15-13511 Crestwood Place,

Richmond, British Columbia • Canada • V6V 2G1

Phone: 604-207-1600 • Fax: 604-207-8008

E-mail: sales@comnav.com

www.comnav.com

Worldwide Service

ADDITIONAL FEATURES

•9 level backlit LCD display

•Colour head gives you Red Night Vision mode for comfortable viewing in all conditions

•Pre-defined parameter sets for full or semi-displacement, planning hulls, stern drives and sailboats

•Multiple steering capability for Fast, Slow and Work modes

•Simple to use course knob with mechanical detent

•Multi-station capability with security station lock

•Automatic trim

•Adjustable yaw, turn rate and rudder settings

•PORT and STBD dodge buttons for collision avoidance

•Output for optional analog rudder angle indicator, up to 4 stations

•Fully compatible with onboard NMEA instruments and most steering systems

•Versatile Wind Mode for excellent sailboat steering

Represented by:

Printed in Canada

Specifications subject to change without notice
