Commander Model P2VS

Virtual Feedback for Enhanced Auto Steering

Autopilot

Commander P2VS

•Auto Learning Intelligent Steering Technology: IST

•Auto SETUP: Automatic drive detection, automatic pilot calibration & automatic compass calibration

•Auto Sea State for enhanced reliability in all weather conditions

•Crystal clear Sunlight Viewable TFT LCD Display or silver backed high contrast monochrome LCD

•Advanced Power Features includes No Drift course: Automatic Leeway Control (ALC)

•Proportional Rate Control provides smooth response at fast cruising speeds

•GPS Nav mode provides precise adaptive track steering

•NMEA 0183 Input/output ports

•Quick Turn Selection: Fish Zag, Continuous Circle, U-Turn and Emergency MOB turn

•Simple touch 8 button illuminated keypad

•Multi-language capability configurable in English, French, Spanish, Italian and others

•Waterproof control head commercial grade to IP67 Standards

•CE compliance for EMI & RF immunity

•Extended 3 year warranty

COMMANDER P2VS

SYSTEM CONFIGURATION & OPTIONS

VESSEL TYPE:

Stern & Outboard Drives

VESSEL SIZE:

22’-50’ vessel

SPECIFICATIONS

Operating Voltage: 11 to 30 VDC

Power Consumption: Average 0.5 Amps, 3 Amps Peak (Lower consumption capability with low backlight setting) Drive Output: 20 Amps DC reversing pump or DC solenoids

Navigational Interface: Dual NMEA 0183 inputs

NMEA 0183 Output: Heading (10Hz), Autopilot Status (1Hz) Heading Reference: Fluxgate Compass with Heading Rate Stabilizer or SSRC Rate Gyro Compass

Course Resolution: 1°

Course Detection: 0.1°

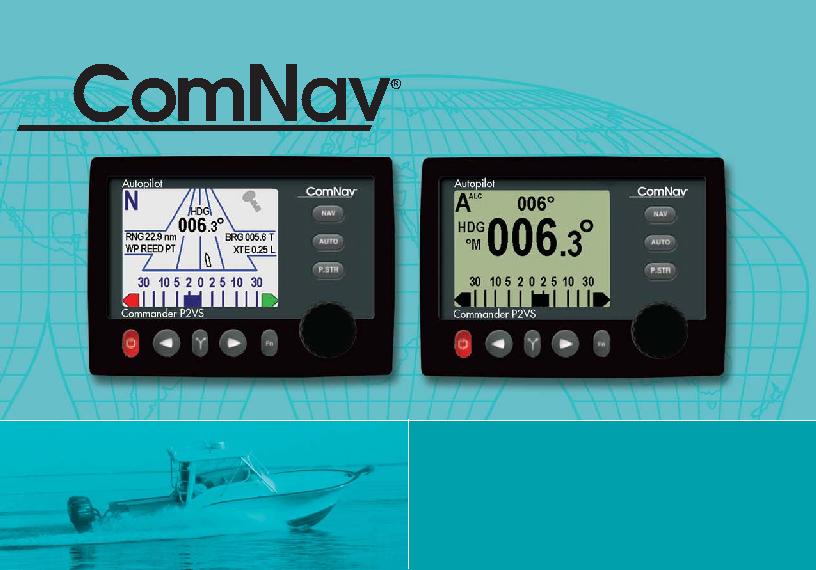

Control Head: Sunlight viewable high contrast LCD is available in color or monochrome version QVGA (320 x 240) high resolution display

ComNav Marine Ltd.

#15-13511 Crestwood Place,

Richmond, British Columbia • Canada • V6V 2G1

Phone: 604-207-1600 • Fax: 604-207-8008

E-mail: sales@comnav.com

www.comnav.com

Worldwide Service

DIMENSIONS

Control Head (surface mount w/o knob):

155 x 113 x 29 mm / 6.1 x 4.5 x 1.2 inches. Cable 25’ Head to SPU Signal Processing Unit: 257 x 184 x 73 mm / 10.2 x 7.3 x 2.9 inches

ADDITIONAL FEATURES

•9 level backlit LCD display

•Color head gives you RED Night Vision mode for comfortable viewing in all ambient conditions

•Pre-defined parameter sets for stern drive

•Multiple steering capability for Fast and Slow speeds

•Simple to use course knob with mechanical detent

•Multi-station capability with security station lock

•Automatic trim

•Adjustable yaw, turn rate and rudder settings

•PORT and STBD dodge buttons for collision avoidance

•Fully compatible with onboard NMEA instruments and most steering systems
